| 원래 장소: | 미국 |
| 브랜드 이름: | Wolvesteam |
| 인증: | CE,FCC |
| 모델 번호: | WT700328 |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | negotiated price |
| 포장 세부 사항: | 차원: 640×540×550 mm 무게: 75 Kg |
| 배달 시간: | 3-4 주 |
| 지불 조건: | L/C, D/P, T/T, 서부 동맹, Paypal |
| 공급 능력: | 년 당 2000 PC |
| 타입: | 폭탄 방해기 | 지역을 움직이지 않게 하기:: | 50-800 미터 |
|---|---|---|---|
| 신호 방해기를 위한: | 20 - 6000MHz 휴대폰 신호 방해기 | 작업 시간: | 지속의 24 Hours/365days |
| 안테나 유형 선택권: | 방향 전방향성 안테나 선택권 | 특별한 기술: | 각 주파수 대 사이 방해를 방지하십시오 |
| 차원: | 640×540×550 mm | 중량: | 75 Kg |
| 소비 전력: | 330W | 포장: | 박스 |
| 강조하다: | 이동용 차량 폭탄 전파 교란기,군대 차량 폭탄 Jammer,330W 휴대폰 신호 전파 교란기 |
||
Product description :

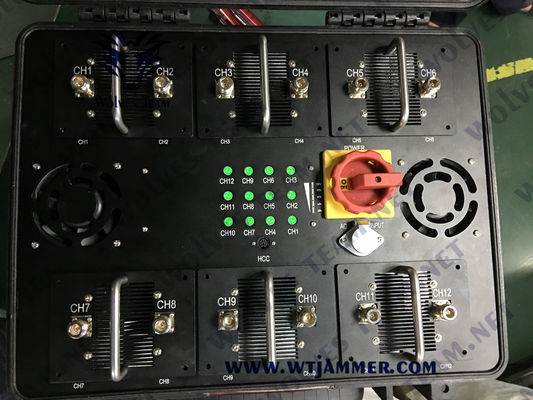

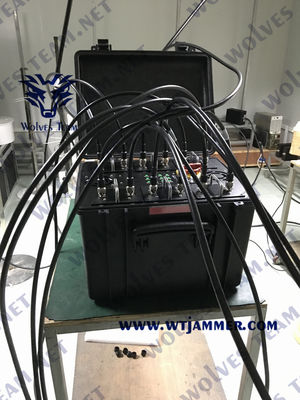

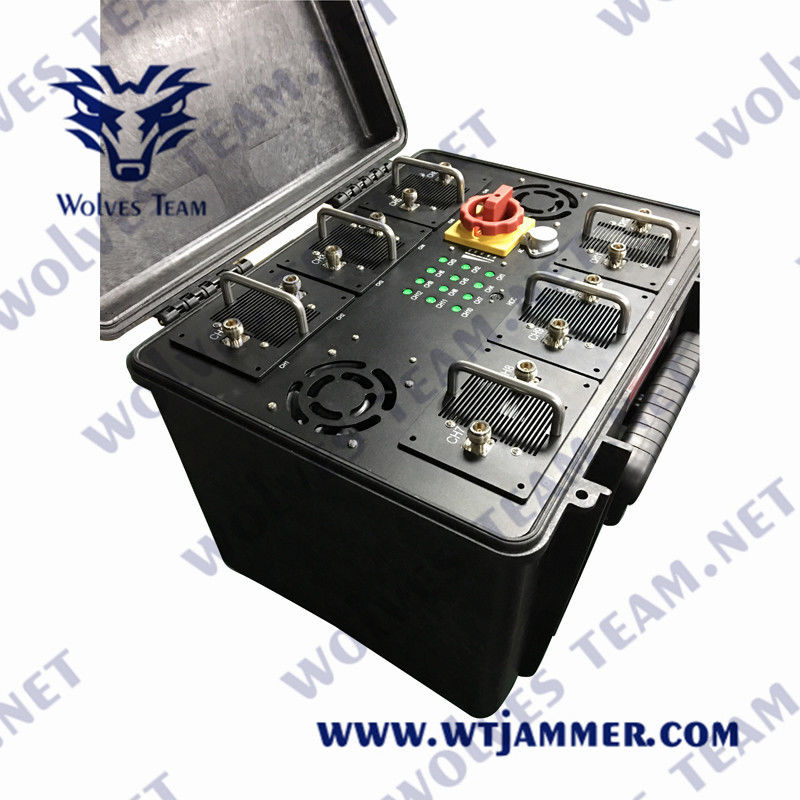

This device is not only bomb jammers, but also high power portable DDS convoy jamming system,portable RF jammer,portable vehicle bomb jammer. This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cove all RF communication Frequencies between 20MHz to 6000MHz continuously and simultaneously.
Features:
Technical Specifications:
12 bands for option: The frequencies can be from 20-6000MHZ
|
Output Interface |
Frequency Range |
Out Power |
RF Output dBm |
|
CH1 |
20-108MHz |
Wireless ,FM Radio |
100W |
|
CH2 |
135-174MHz |
Wilkie-talkie(VHF) |
100W |
|
CH3 |
300-400MHz |
Remote Control, Drone |
100W |
|
CH4 |
400-470MHz |
Wilkie-talkie(UHF),Car alarm |
100W |
|
CH5 |
851-894MHz |
CDMA |
100W |
|
CH6 |
925-960MHz |
GSM |
100W |
| CH7 | 1570-1580MHz | GPSL1 | 50W |
|
CH8 |
1805-1920MHz |
DCS,PCS |
100W |
|
CH9 |
2110-2170MHz |
WCDMA |
50W |
|
CH10 |
2400-2485MHz |
WIFI,Drone,Bluetooth |
50W |
|
CH11 |
5725-5850MHz |
WIFI,Drone |
15W |
|
Jamming Radius: |
50-800M, the jamming radius still depends on the strength signal in given area |
||
|
HS Code: |
8543709200 |
||
|
Total output power: |
600~1200W |
||
| Power Consumption: | 330W | ||
|
Type: |
Vehicle Jammer |
||
|
Dimension: |
640×540×550 mm |
||
|
Packing: |
Neutral Packing |
||
|
Signal Jammer for: |
20 - 6000MHz Cell Phone Signal Jammer |
||
|
Power supply: |
AC110 240V |
||
| Weight: | 75 Kg | ||
| Humidity: | 5%-95% | ||
| Working Temp: | -20℃ to +55℃ | ||
RF Characteristics:
| RF Characteristics | Description |
| Output Power | 915 Watts |
| Internal Modulation | FM Hopping Frequency |
| Signal Source | VCO Synthesized |
| Power Supply | AC110-240V,24V or 48V DC |
| Modules Per Unit | 11 |
| Contol | ON/OFF with Switch |
| Monitoring | Adjusted output power by DIP switch |
| Antenna | External- Omni-directional for 360° |
| Power Amplifier Protectors | Full VSWR Protector |
| Operating Hours | Unlimited |
Applicable Area:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,detention centers, interrogation rooms, courts,
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
Terms and conditions:
|
Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
|
Payment Terms |
40% advance, 40% after one month,20% before shipping. |
|
Terms of Delivery |
FOB HONGKONG/ USA. |
|
Warranty |
36 months. |
|
Software Updates |
Free software updates will be provided for a period of 36 months. |
|
Extended Warranty |
After 4th Year : 5% of total for each years. |
