| Place of Origin: | China |
| 브랜드 이름: | Wolves Team |
| 인증: | CE,ISO |
| Model Number: | WT805712 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| 재료: | 알루미늄 합금 | 이점: | 업그레이드 모듈 설치를 위해 계속하세요 |
|---|---|---|---|
| 사용: | VIP 보호에 경찰 사용 | 재밍 주파수: | 20-6000MHz 2G 3G 4G 5G WiFi VHF UHF |
| 포장: | 상자 | 배터리 작동 시간: | 2-3 시간 |
| 방해 범위: | 최고 300까지 미터 | 모니터 소프트웨어 기능: | 각각 기계의 원격 제어 스위치 장치. |
| 강조하다: | 300 meters cell phone jammer,aluminum alloy signal jammer,vehicle jammer 20-6000Mhz |
||

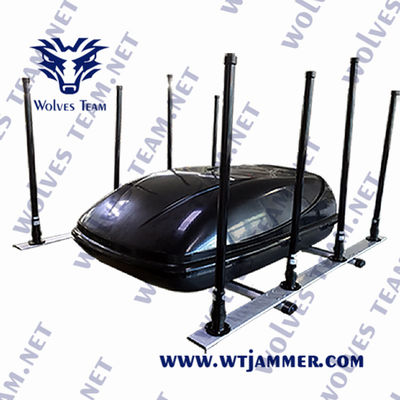

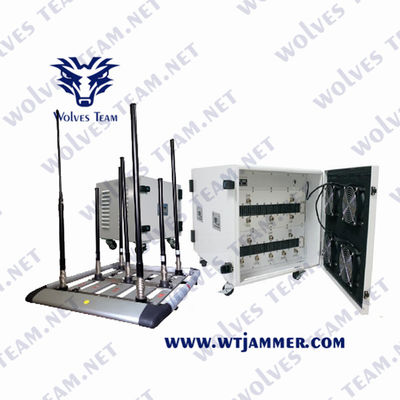

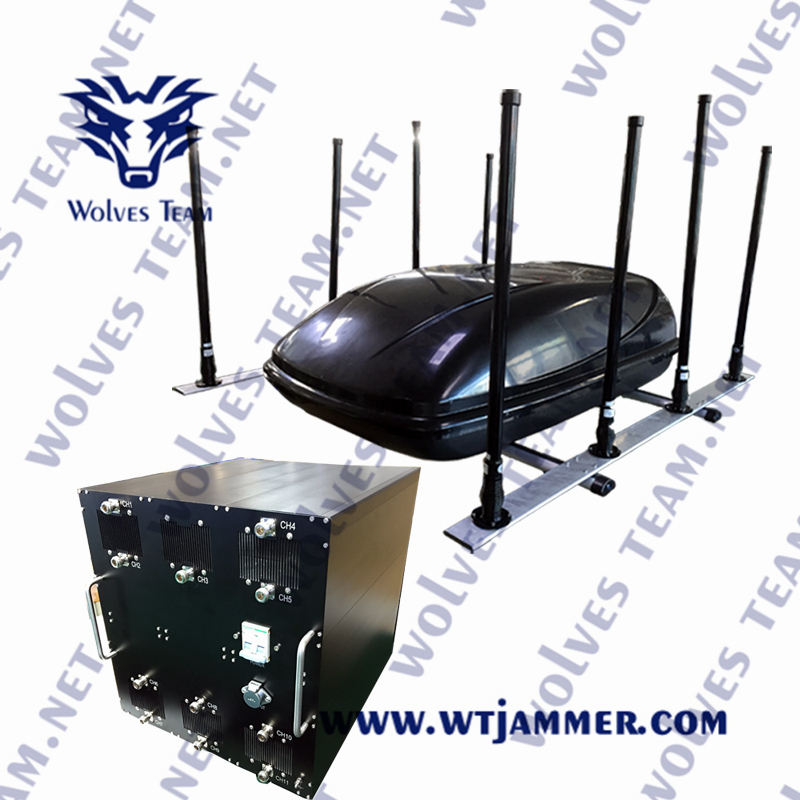

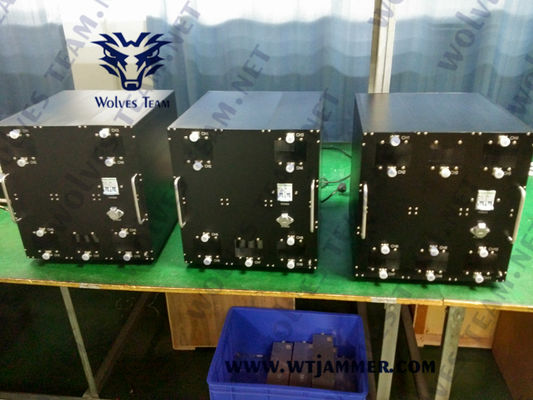

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed for Protect military and country leaders VIP team, EOD, police investigation and arrest prisons, government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Also this Bomb jammer can cover, continuously and simultaneously, all the RF communication Frequencies can custom for 20-6000MHz . It will be the best solution to defend a VIP convoy for and features rapid deployment and set up for military bases, important sports events, international summits, and other high profile events.
The Bomb jammer is a fully portable multi-band PLL or DDS Jamming system, and designed with a ruggedized trolley type case for high mobility. This device is configured more than 12 different jamming modules, and the jamming frequency can be more than 12 Bands. This High power Jammer 12 bands jamming frequency modules can provide up to 1200 Watt output power maximum.
The Bomb jammer is very easily installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.
The product features an aluminum-alloy casing that provides high protection and resistance to dust, water, and corrosion.
The heat sink is designed in conjunction with fans to ensure the system remains in a cooling status for optimal performance.
A special technology is incorporated to prevent interference between each frequency band.
The device only interferes with the downlink frequency of the mobile system, without disturbing the normal operation of Base Stations.
Users can choose frequency bands and adjust the output power according to their needs. Each frequency band is controlled by independent RF ON/OFF switches.
The system includes circuit protection to prevent burnout in case of antenna short-circuiting or disconnection.
Customers have the option to choose between directional or Omni-directional antennas for their setup.
The system is designed for easy operation and installation, with provisions for upgrade module installation to keep up with changing needs.
The system is built to work continuously, 24 hours a day, 365 days a year.
|
Output Interface |
RF Frequency Band(MHz) |
Application | RF Output Power (Watt) |
| CH1 | 20-80 | Toys HM Remote control | 50W |
| CH2 | 135-175 | Walky-talky VHF/Lojack | 50W |
| CH3 | 400-480 | Walky-talky (UHF400) | 50W |
| CH4 | 790-826MHz | 4G/GSM850 | 50W |
| CH5 | 925-960MHz | GSM900 | 50W |
| CH6 | 1800-1880MHz | DCS | 50W |
| CH7 | 2100-2170MHz | 3G | 50W |
| CH8 | 2570-2690MHz | 4G WIMAX | 50W |
| CH9 | 3400-3600MHz | 5G | 50W |
| CH10 | 2400-2500 | WIFI & Bluetooth | 50W |
| CH11 | 5700-5800 MHz | WIFI 5.8G | 50W |
| CH12 | 1560-1625MHz | GPSL1 | 50W |
| Option | 20-6000MHz | Option | Option |
| Total RF Power | 600Watt | ||
| Power supply | Input AC230V | ||
| Shielding area | 100-300m @ according to signal density of mobile network | ||
| Jammer Module Number | 12 | ||
| Cooling System | Systematic Smart Cooling System | ||
| System Protection | VSWR, Over-voltage, Over-current | ||
| Jamming Source | PLL Source Technology | ||
| Remote Control (Option) | Full System Operation Control | ||
| Antenna Type | High Gain Omnidirectional Antennas | ||
| Number of Antennas | 12 | ||
| Power consumption: | 600W | ||
| Power Supply Source (Option) | Additional AC Alternator ( 600W) or Additional DC Generator ( +24 VDC/25A ) |
||
| Weight: | 35.00Kg | ||
| Size (length × wind × high): | 580×580×680mm | ||
| Humidity: | 30%-95% | ||
| Running Temperature: | -20 to +60 Celsius Degree | ||
High quality jammers are extensively utilized in various sectors such as Military Units, Prisons, Police, Bomb Disposal Units, and Security Services.
They are also commonly employed in locations like government facilities, Gas Stations, security guard services, Schools, Churches, surveillance in Meeting Rooms, Libraries, Hospitals, Theaters, Classrooms, and other critical settings.
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 50% advance, 50% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
