10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer

MOQ:	1
가격:	1
지불 조건:	L/C, D/P, T/T, 웨스턴 유니온

상세 정보

제품 설명

상세 정보

제품명:

차량 신호 전파 교란기

제품 유형:

차량 탑재

총 출력 전력:

25W - 3500W

채널당 최대 전력:

10W - 200W

방해 반경:

50 - 2000 미터

방해 각도:

90 ° -360 °

응답/시작 시간:

<3 초

전원 공급 장치 방법:

DC 12V-28V / DC 24V

작동 전압:

12V-24V

안테나 이득:

≥8dBi

작동 온도:

-40C 내지 +65C

유입 방지:

IP65 -IP68

포장 세부 사항:

판지 포장

공급 능력:

제품 설명

Product Description

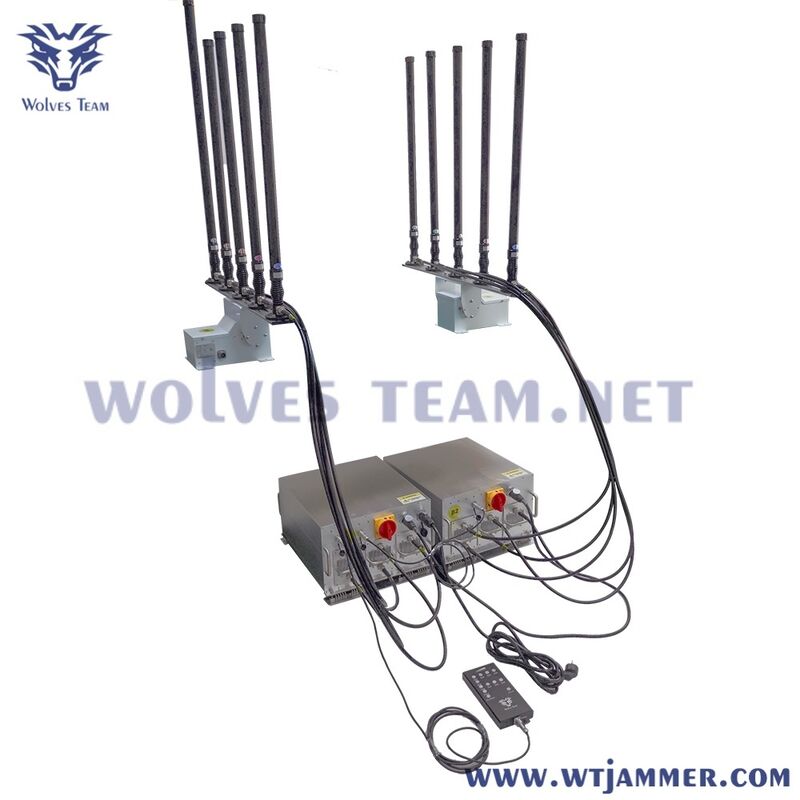

This 10-channel vehicle mounted signal jammer is a high-power, vehicle-integrated interference system designed for VIP convoy protection, EOD operations, tactical missions. It simultaneously blocks 2G/3G/4G/5G, GPS L1/L2, WiFi 2.4G/5.8G, VHF/UHF, and RCIED frequencies within a 100-500m radius. Powered directly via vehicle electrical system (DC 12V-24V) with optional battery backup, it is ready for deployment in seconds and supports on-the-move operation.

Main Features

· 10 independent frequency bands for full coverage

· Blocks 2G/3G/4G/Cellphone/WiFi/GPS signals

· High power output for stable and efficient jamming

· Built-in cooling fan supports 24h continuous working

· Rugged metal housing with excellent heat dissipation

· Desktop design, easy to place and operate

· Wide voltage compatibility: AC 110-240V

· Suitable for office, conference room, exam room, security room

Applications

· Conference room signal control

· Exam hall mobile phone management

· Privacy and information security protection

· Anti-eavesdropping and anti-tracking

· Government and enterprise confidential places

Specification

Channel	Frequency Range	Target Signal	Output Power
CH1	25-100MHz	Remote controls, RCIED, car key fobs	50W
CH2	135-174MHz	VHF two-way radios	50W
CH3	310-317MHz	Interphone / car remote controller	50W
CH4	400-470MHz	UHF radios, CDMA450M, drone remotes	50W
CH5	867-960MHz	CDMA, GSM900	50W
CH6	1100-1300MHz	Other wireless signals	50W
CH7	1525-1675MHz	GPS L1, GLONASS, satellite phones	50W
CH8	1805-1920MHz	DCS, PHS, FDD-LTE, TDD-LTE	50W
CH9	2110-2170MHz	WCDMA, CDMA2000 (3G)	50W
CH10	2300-2400MHz	TDD-LTE, FDD-LTE (4G)	50W
CH11	2400-2485MHz	WiFi 2.4G, Bluetooth, WLAN	30W
CH12	2515-2675MHz	TDD-LTE, FDD-LTE, 5G NR N41	30W
CH13	3400-3600MHz	5G NR N78 (C-Band)	30W
CH14	4800-4900MHz	5G NR N79	30W
CH15	5725-5850MHz	WiFi 5.8G, drone video transmission	30W
CH16	1560-1620MHz	GPS L1 (Backup)	30W
Note: Frequency band configuration can be customized according to customer needs. The optional frequency bands include 2G/3G/4G/5G full frequency band, drone communication frequency band, LoJack, etc.

Parameter	Specification
Product Name	Vehicle Mounted Signal Jammer
Product Type	Convoy Jammer / Vehicle RF Blocker
Number of Channels	[6 / 8 / 12 / 16 / 24]
Frequency Range	20-6000MHz (customizable)
Total RF Power	[50W / 850W / 1100W / 1800W]
Power per Channel	Up to 100W (50dBm) for select bands
Jamming Radius	100-500m (LOS environment, -75dBm)
Jamming Technology	DDS digital frequency synthesis / FPGA
Power Supply	DC 12-24V AC 220V optional / DC 28V battery
Battery Backup	Optional built-in battery (≥60 minutes)
Power Consumption	[200W - 6000W]
Cooling System	Aluminum heat sink + intelligent fans
Operating Temperature	-30℃ to +65℃
Ingress Protection	IP65 / IP68 (optional)
Antenna Type	Omnidirectional fiberglass / Directional panel
Antenna Gain	≥8 dBi
Channel Control	Independent on/off per channel
Remote Control	Wired driver/passenger controller

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 0

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 1

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 2

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 3

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 4

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 5

10 Channels 100W Vehicle Mounted 5G GPS Drone UAV Full Band Signal Jammer 6

Company Profile

Shenzhen Dezhen Technology Electronics Co., Ltd. was established in 2014. We are a high-tech enterprise specializing in the research and manufacturing of high-performance wireless communication technology products, particularly focusing on shortwave (HF), very high frequency (VHF), ultra-high frequency (UHF), radio frequency (RF), and microwave (MW) frequency bands (covering the range of 20 MHz to 6000 MHz), including but not limited to narrowband, broadband, linear, high gain, high-power, and low-power models. All products have undergone reliability testing.
We focus on independent research and production of drone countermeasures to ensure aviation safety and privacy, but require necessary legal authorization. This device is designed to interfere with and block satellite positioning signals, including GPS, Beidou, GLONASS, and Galileo. In addition, it can also interfere with and block the commonly used ISM 2.4GHz and ISM 5.8GHz frequency bands for drones, forcing the interruption of remote control, image transmission, positioning and other signals, thereby achieving functions such as forced landing, return and hovering. Our main products include signal amplifiers, RF power amplifier modules, wireless signal control systems, wireless signal countermeasure systems, wireless signal interference equipment, and explosion-proof interference equipment. Our products are widely used in telecommunications, scientific research institutions, professional on-site communication RF modules, communication signal coverage systems, professional measurement equipment, and electronic warfare fields.

Certifications

FAQ

Q: What is the delivery cycle for the order?
A: Standard models will be shipped in 15 days; Customized units require 15-30 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have established cooperative relationships with service centers in key areas.
Q: Can I request customized bucket size?
A: Of course! We provide customized attachments.
Q: What export documents do you provide?
A: Complete export packaging (commercial invoice, packing list, bill of lading, COC, etc.).
Q: How can I place an order?
A: Contact us via email/phone to obtain a quote, and then confirm the order.
