10 Channels 200W Vehicle Mounted Full Frequency 5G GPS Drone Blocker

상세 정보

제품 설명

상세 정보

강조하다:

5G GPS drone signal jammer

vehicle mounted frequency blocker

200W multi-channel jammer

제품 설명

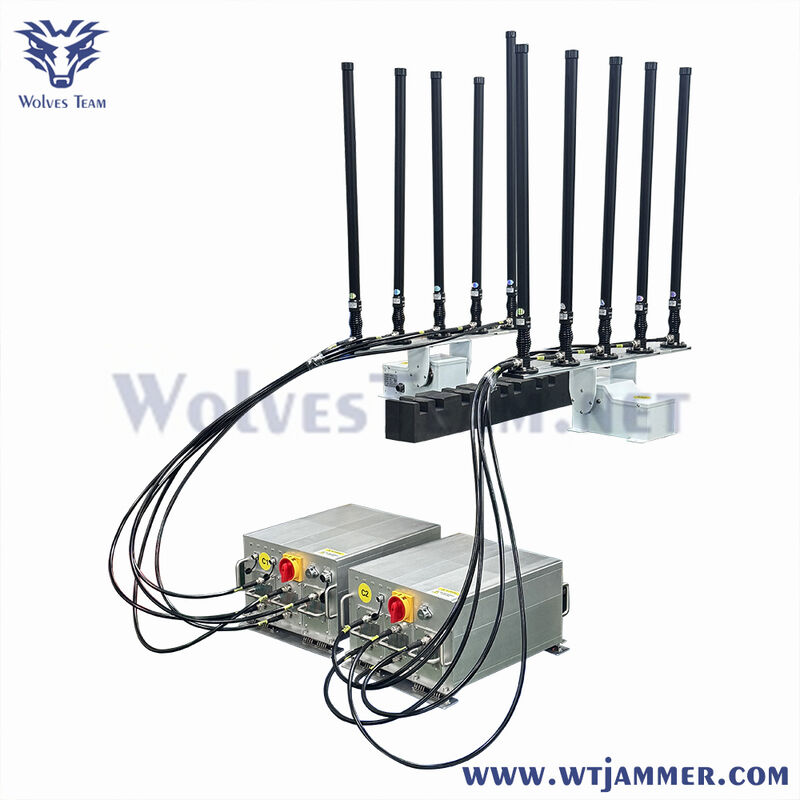

10 Channels 200W Vehicle Mounted Full Frequency 5G GPS Drone Blocker

This High Power Full Band Vehicle Convoy Protection Roof Mounted Jammer System implements the most effective and reliable RF jamming technology with a fully-integrated broadband jamming system. Designed for protecting VIP teams, EOD units, investigation teams, government buildings, and responding to emergencies involving wireless remote bombs.

Key Features

Aluminum-Alloy Casing with high protection against dust, water, and corrosion
Advanced cooling system with heat sink design and fans for optimal performance
Interference prevention technology between frequency bands
Selective frequency interference targeting only downlink frequencies
Customizable frequency bands and output power with independent controls
Circuit protection against antenna short circuits or disconnections
Flexible antenna options (directional or omni-directional)
Easy operation and installation with quick setup
Upgrade capability for future enhancements
Continuous 24/7/365 operation capability

Technical Specifications

Output Interface	Frequency Range	Application	Output Power
CH1	20-108MHz	Wireless, FM Radio	100W
CH2	135-174MHz	Walkie-talkie (VHF)	100W
CH3	300-400MHz	Remote Control, Drone	100W
CH4	400-470MHz	Walkie-talkie (UHF), Car alarm	100W
CH5	851-894MHz	CDMA	100W
CH6	925-960MHz	GSM	100W
CH7	1560-1625MHz	GPS L1	50W
CH8	1805-1920MHz	DCS, PCS	100W
CH9	2110-2170MHz	WCDMA	50W
CH10	2400-2485MHz	WiFi, Drone, Bluetooth	50W
CH11	5725-5850MHz	WiFi, Drone	50W

Additional Specifications

Jamming Radius	50-800M (depends on signal strength in given area)
HS Code	8543709200
Total Output Power	600-1200W
Power Consumption	330W
Type	Vehicle Bomb Jammer
Dimension	640×540×550 mm
Packing	Box
Signal Jammer For	20-6000MHz Cell Phone Signal Jammer
Power Supply	AC110-240V
Weight	75 Kg
Humidity	5%-95%
Working Temperature	-20ºC to +55ºC

RF Characteristics

Parameter	Specification
Output Power	915 Watts
Internal Modulation	FM Hopping Frequency
Signal Source	VCO Synthesized
Power Supply	AC110-240V, 24V or 48V DC
Modules Per Unit	11
Control	ON/OFF with Switch
Monitoring	Adjusted output power by DIP switch
Antenna	External - Omni-directional for 360°
Power Amplifier Protectors	Full VSWR Protector
Operating Hours	Unlimited

Application Areas

Examination rooms, prisons, gas stations, oil depots, LPG stations
Detention centers, interrogation rooms, courts, reform-through-labour teams
Conference rooms, movie theaters, churches, libraries, school dormitories
Special security and confidential occasions (confidential offices, negotiation rooms)
Mobile vehicles, mobile political and business dignitaries guarding scenes
All prohibited places where mobile phone use is restricted

Frequently Asked Questions

Does the jammer interfere with other electronic equipment working in normal condition?

No. The electromagnetic signals sent by the jammer are regulated by government standards and only have interception effect on cell phone communication.

Is the jammer harmful to the human body and cell phones?

No. The electromagnetic signal intensity complies with national environmental electromagnetic wave health standards. The signal is relatively small and unharmful to the human body. The device only disrupts the connection between cell phones and base stations without damaging the cell phones themselves.

Product Images

Terms and Conditions

Item	Details
Delivery Time Schedule	3 weeks from receipt of confirmed purchase order and advance payment
Payment Terms	50% advance, 50% before shipping
Terms of Delivery	FOB HONGKONG/ USA
Warranty	36 months
Software Updates	Free software updates for 36 months
Extended Warranty	After 4th Year: 5% of total for each year
